Process in Rust中的进程编程
系统编程
系统运行模式
我学«微机原理»的时候在20十几年前,那个时候的教材是基于8086的,现在的计算机已经过于复杂,我现在已经完全看不太懂体系结构的文章。但是,大概的系统运行模式应该还是差不多的。

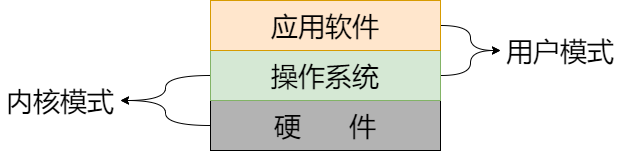

在我的概念里,计算机系统依然是硬件、操作系统、应用软件构成的。硬件和操作系统的内核运行在内核模式、操作系统的部分功能和应用软件运行在用户模式。大概就是这样,如果不对,请指正。
操作系统的最底层的基本概念就是进程的概念。进程是一个独立的运行单元,包括独立的地址空间、独立的资源、独立的执行路径。
进程
大概而言,进程的运行状态转移过程如下:
stateDiagram-v2 [*] --> Running(R) Running(R) --> Sleep(S): sleep(10) Sleep(S) --> Running(R): 10 seconds later Running(R) --> Zombie(Z): kill() Running(R) --> Stopped(T): Signal(SIGSTOP) Stopped(T) --> Running(R): Signal(SIGCONT) Zombie(Z) --> [*]: exit()
启动一个进程,操作系统会为进程分配一个唯一的进程ID,并创建一个进程控制块(PCB),PCB是进程的描述信息,包括进程的运行状态、进程的优先级、进程的地址空间等。
进程受到各种信号的影响,会进行状态的转移转移,例如,进程收到SIGSTOP信号,会从Running状态转移到Stopped状态;从Stopped状态收到SIGCONT信号,会从Stopped状态转移到Running状态。
进程收到SIGKILL信号,会从Running状态转移到Zombie状态,进程退出。
大概就是这样。
在Linux系统中,第一个创建的进程,是init进程,是所有进程的父进程。它的进程ID是1。在UNIX类似的系统中,进程创建子进程的方式特别好玩,它会调用一个函数fork()
,这个函数会创建一个与父进程完全相同的进程,子进程会克隆父进程;创建完成后,子进程除了PID跟父进程不同,其他都一样。随后,操作系统会替换子进程的代码段,执行新的代码,这样就实现了进程的创建,通常,新的进程会执行某个程序,用exec()
函数替换代码段。
信号列表
下面是Linux的Man Page中给出的信号列表。
信号 | 标准 | 动作 | 说明 |
---|---|---|---|
SIGABRT | P1990 | Core | Abort signal from abort(3) |
SIGALRM | P1990 | Term | Timer signal from alarm(2) |
SIGBUS | P2001 | Core | Bus error (bad memory access) |
SIGCHLD | P1990 | Ign | Child stopped or terminated |
SIGCLD | - | Ign | A synonym for SIGCHLD |
SIGCONT | P1990 | Cont | Continue if stopped |
SIGEMT | - | Term | Emulator trap |
SIGFPE | P1990 | Core | Erroneous arithmetic operation |
SIGHUP | P1990 | Term | Hangup detected on controlling terminal or death of controlling process |
SIGILL | P1990 | Core | Illegal Instruction |
SIGINFO | - | - | A synonym for SIGPWR |
SIGINT | P1990 | Term | Interrupt from keyboard |
SIGIO | - | Term | I/O now possible (4.2BSD) |
SIGIOT | - | Core | IOT trap. A synonym for SIGABRT |
SIGKILL | P1990 | Term | Kill signal |
SIGLOST | - | Term | File lock lost (unused) |
SIGPIPE | P1990 | Term | Broken pipe: write to pipe with no readers; see pipe(7) |
SIGPOLL | P2001 | Term | Pollable event (Sys V); synonym for SIGIO |
SIGPROF | P2001 | Term | Profiling timer expired |
SIGPWR | - | Term | Power failure (System V) |
SIGQUIT | P1990 | Core | Quit from keyboard |
SIGSEGV | P1990 | Core | Invalid memory reference |
SIGSTKFLT | - | Term | Stack fault on coprocessor (unused) |
SIGSTOP | P1990 | Stop | Stop process |
SIGTSTP | P1990 | Stop | Stop typed at terminal |
SIGSYS | P2001 | Core | Bad system call (SVr4); see also seccomp(2) |
SIGTERM | P1990 | Term | Termination signal |
SIGTRAP | P2001 | Core | Trace/breakpoint trap |
SIGTTIN | P1990 | Stop | Terminal input for background process |
SIGTTOU | P1990 | Stop | Terminal output for background process |
SIGUNUSED | - | Core | Synonymous with SIGSYS |
SIGURG | P2001 | Ign | Urgent condition on socket (4.2BSD) |
SIGUSR1 | P1990 | Term | User-defined signal 1 |
SIGUSR2 | P1990 | Term | User-defined signal 2 |
SIGVTALRM | P2001 | Term | Virtual alarm clock (4.2BSD) |
SIGXCPU | P2001 | Core | CPU time limit exceeded (4.2BSD); see setrlimit(2) |
SIGXFSZ | P2001 | Core | File size limit exceeded (4.2BSD); see setrlimit(2) |
SIGWINCH | - | Ign | Window resize signal (4.3BSD, Sun) |
在不同的操作系统中,信号的支持和实现可能是不一样的。
C语言的进程编程
记得当时学习C语言的进程编程时,一堆人死活都搞不懂,我反正也是很糊涂。
1#include <stdio.h>
2#include <unistd.h>
3#include <sys/types.h>
4#include <sys/wait.h>
5
6int main()
7{
8 pid_t pid;
9 printf("Parent process starting, PID: %d\n", getpid());
10
11 pid = fork();
12 if (pid < 0)
13 {
14 perror("fork");
15 return 1;
16 }
17
18 if (pid == 0)
19 {
20 printf("Child process, PID: %d, Parent PID: %d\n", getpid(), getppid());
21 char *args[] = {"ls", "-l", NULL};
22 execv("/bin/ls", args);
23 perror("execv /bin/ls failed.");
24 return 127;
25 }
26 else
27 {
28 printf("Parent process continuing, PID: %d, Child PID: %d\n", getpid(), pid);
29 // wait for child process to exit
30 int status;
31 wait(&status);
32 printf("Child process exited with status %d\n", status);
33 }
34 return 0;
35}
我们在wsl下面可以运行下面的命令:
1gcc process.c -o process
2./process
运行的结果其实挺好玩的:
1 ./build/process
2Parent process starting, PID: 3973
3Parent process continuing, PID: 3973, Child PID: 3974
4Child process, PID: 3974, Parent PID: 3973
5total 24
6-rwxrwxrwx 1 qchen qchen 265 May 7 09:37 CMakeLists.txt
7-rwxrwxrwx 1 qchen qchen 159 May 7 09:39 Cargo.lock
8-rwxrwxrwx 1 qchen qchen 86 May 7 09:38 Cargo.toml
9drwxrwxrwx 1 qchen qchen 4096 May 7 15:05 build
10-rwxrwxrwx 1 qchen qchen 819 May 7 15:05 process.c
11-rwxrwxrwx 1 qchen qchen 19293 May 7 10:41 process.png
12drwxrwxrwx 1 qchen qchen 4096 May 7 09:38 src
13drwxrwxrwx 1 qchen qchen 4096 May 7 09:43 target
14Child process exited with status 0
首先,在父进程中,fork()
返回的子进程的PID是3974,在子进程中,getpid()
返回的PID也是3974,getppid()
返回的父进程的PID是3973。但是在子进程中,变量pid
的值是0。这样就把父进程和子进程区分开了。反正还是挺绕圈的。
当然我也准备了cmakelist.txt
,可以运行下面的命令。
1cmake -B build
2cmake --build build
3./build/process
1cmake_minimum_required(VERSION 3.25)
2project(process_in_rust C)
3
4# Set C standard
5set(CMAKE_C_STANDARD 11)
6set(CMAKE_C_STANDARD_REQUIRED ON)
7
8# Add executable
9add_executable(process process.c)
10
11# cmake -Bbuild
12# cmake --build build
13# ./build/process
从这个程序可以看到,父进程和子进程实际上共享了同一个程序的源代码,仅仅通过pid来区分。整个逻辑理解起来特别的困难。
Rust的进程编程
Rust的进程编程,其实和C语言的进程编程是类似的,只不过Rust的进程编程看起来更加清晰。
1use nix::unistd::getppid;
2use std::io::Read;
3use std::os::unix::process::CommandExt;
4use std::process::{Command, Stdio};
5
6fn main() -> std::io::Result<()> {
7 println!("Parent process starting, PID: {}", std::process::id());
8
9 // 创建子进程
10 let mut command = Command::new("ls");
11 command.arg("-l");
12
13 unsafe {
14 command.pre_exec(|| {
15 println!(
16 "Child process starting, PID: {}, PPID: {}",
17 std::process::id(),
18 getppid().as_raw()
19 );
20 Ok(())
21 });
22 }
23
24 let mut child = command.spawn()?;
25
26 // 等待子进程完成并获取输出
27 let mut output = String::new();
28 if let Some(mut stdout) = child.stdout.take() {
29 stdout.read_to_string(&mut output)?;
30 }
31
32 // 等待子进程结束并获取状态
33 let status = child.wait()?;
34
35 println!("Child process output:\n{}", output);
36 println!("Child process exited with status: {}", status);
37
38 Ok(())
39}
运行结果如下:
1Parent process starting, PID: 5294
2Child process starting, PID: 5376, PPID: 5294
3total 28
4-rwxrwxrwx 1 qchen qchen 265 May 7 09:37 CMakeLists.txt
5-rwxrwxrwx 1 qchen qchen 1643 May 7 15:23 Cargo.lock
6-rwxrwxrwx 1 qchen qchen 112 May 7 15:23 Cargo.toml
7drwxrwxrwx 1 qchen qchen 4096 May 7 15:05 build
8-rwxrwxrwx 1 qchen qchen 819 May 7 15:06 process.c
9-rwxrwxrwx 1 qchen qchen 19293 May 7 10:41 process.png
10drwxrwxrwx 1 qchen qchen 4096 May 7 09:38 src
11drwxrwxrwx 1 qchen qchen 4096 May 7 09:43 target
12Child process output:
13
14Child process exited with status: exit status: 0
为了证明,Rust子进程的PPID就是父进程的PID,又是引入libc
/nix
库,又是CommandExt
,还整了unsafe
,真是太麻烦了。
1[package]
2name = "process-in-rust"
3version = "0.1.0"
4edition = "2021"
5
6[dependencies]
7libc = "0.2"
8nix = "0.26"
如果不需要搞这些玩意,实际上这个代码可以很简单很简单。
1use std::process::Command;
2
3fn main() -> std::io::Result<()> {
4 let output = Command::new("ls")
5 .arg("-l")
6 .output()
7 .expect("failed to run ls");
8 println!(
9 "Child process output: {}",
10 String::from_utf8_lossy(&output.stdout)
11 );
12 Ok(())
13}
简直是非常简单明了,整个都很清晰,output()
会等待子进程结束,并返回子进程的输出。
总结
Rust的进程编程,其实和C语言的进程编程是类似的,只不过Rust的进程编程看起来更加清晰。
