Callbacks_in_MATLAB中APP界面回调函数

回调函数

用法

回调函数，是Matlab GUI和App设计中的一个核心的内容。通过用户注册回调函数，在界面操作时App代码会自动调用相应代码，实现各种功能。编程实现GUI App时，回调函数的注册方式有两种：

 1function fig = createApp
 2fig = uifigure;
 3
 4btn = uibutton(fig, 'push', 'ButtonPushedFcn', @buttonPushed);
 5% btn = uibutton(fig, 'push', ButtonPushedFcn=@buttonPushed);
 6
 7btn.ButtonPushedFcn = @buttonPushed;
 8
 9% 或者
10fh = @(src, event) disp('Button pushed');
11btn.ButtonPushedFcn = fh;
12
13end

具体回调函数的形式请查看帮助，一般而言，函数有两个参数，第一个参数是发起回调的对象，这里就是btn，第二个参数是事件数据，这里是ButtonPushedData。

回调函数设定时的值可以有三种形式：

  • 函数句柄，如@buttonPushed
  • 函数句柄和参数，如{@buttonPushed, arg1, arg2}
  • 匿名函数，如@(src, event) disp('Button pushed')

全局函数、局部函数和嵌套函数

以这个函数为例：

1function buttonPushed(src, event)
2    disp('Button pushed');
3end

函数可以通过三种方式来实现：

  • 函数文件形式的全局函数，单独有一个buttonPushed.m文件
  • 放在文件最后的局部函数，在这里就是函数文件function ...... end之后的局部函数
  • 放在函数内部的嵌套函数

嵌套函数的定义形式如下：

1function fig = createApp
2
3    fig = uifigure;
4    btn = uibutton(fig, 'push', 'ButtonPushedFcn', @buttonPushed);
5
6    function buttonPushed(src, event)
7        disp('Button pushed');
8    end
9end

这三种情况没有本质的区别，其中，嵌套函数可以共享在函数调用之前定义的所有变量，这是一个很有用的特性。

全局函数和局部函数都不能共享变量，但是可以通过global关键字来共享变量。主要通过{@functionName, arg1, arg2}的形式来传递参数。另外，匿名函数也捕获函数，比如：

1@(src, event) funcWithExtraArgs(args1, src, event, arg2)

这种情况下，funcWithExtraArgs函数会被调用，参数是args1, src, event, arg2。这个时候，整个函数的排列方式是按照用户的需要自行定义的。

内部实现

用于App响应用户的输入。在类层次结构中给出的UI相关的类结构中，实现了一个对用户提供的响应函数的支持。

  • matlab.ui.control.internal.controller.ComponentController
  • appdesservices.internal.interfaces.model.AbstractModel

其中两个重要的类是ComponentController和AbstractModel，这两个类是handle的子类，构成一个MVC模式。ComponentController是控制器，AbstractModel是模型。

在ComponentController中， 有一个函数：

 1function handleUserInteraction(obj, clientEventName, eventData, callbackInfo)
 2    % Method to be called by the subclasses when handling a user
 3    % interaction that results in either:
 4    % - a user callback executing  (e.g. ButtonPushedFcn)
 5    % - a property update and a user callback executing (e.g.
 6    % ValueChangedFcn)
 7    % - any number greater than 2 of the above (e.g. 'mouseclicked'
 8    % results in 2 callbacks)
 9    %
10    % Typically, the subclasses would implement handleEvent, and in
11    % the case of a user interaction, call handleUserInteraction.
12    %
13    % INPUTS:
14    %
15    %  - clientEventName:  event name of the client side event
16    %                       that this is a response to
17    %
18    %  - eventData: event data of the client side event that this
19    %               is a response to
20    %
21    %  - as many cells as the number of callbacks to execute.
22    %  Minimum is 1.
23    %  See executeUserCallback for the formatting of each cell.
24    %
25    % Example:
26    %
27    % obj.handleUserInteraction(...
28    %       'mousedragging', ...
29    %       event.Data, ...
30    %       {'ValueChanging', eventData}, ...
31    %       {'ValueChanged', eventData, 'Value', newValue}, ...
32    %       );
33
34    assert(nargin == 4);
35
36    obj.Model.executeUserCallback(callbackInfo{:});
37
38    if(~isvalid(obj))
39        % It is possible the user callback deleted the component
40        %
41        % If so, don't do any more
42        return;
43    end
44    % Force the view to process the value update before
45    % emitting the event.
46    % If the property is revered to its old value in a callback
47    % (its own or from another component),
48    % the visual might not update because of the peer node
49    % coalescing events from property sets.
50    % Ensure that the visual will react to a potential
51    % reversion by forcing the view to process the current
52    % value.
53    %
54    % We don't need to specify any property names in
55    % 'refreshProperties' because simply sending an event
56    % flushes the propertiesSet event queue. If we explicitly
57    % passed in the propertyName, the view would refresh
58    % twice in the case of the reversion from the callback of
59    % another component.
60    %
61    % see g1124873 and g1218934
62
63    obj.refreshProperties({});
64
65
66    % After all matlab events for this client side event have been
67    % emitted and callbacks processed, send an event to the client
68    % if the event is registered to use an event coalescing
69    % mechanism.
70    % Need to check if obj and ViewModel are valid or not because
71    % the user's callback could delete the app or the component
72    % see g1336677
73    coalescedEventIsField = isfield(eventData, 'CoalescedEvent');
74    if(isvalid(obj) && coalescedEventIsField && eventData.CoalescedEvent)
75        obj.sendFlushEventToClient(obj.Model, clientEventName);
76    end
77
78end

这里面的obj.Model就是一个AbstractModel的对象

 1function executeUserCallback(obj, matlabEventName, matlabEventData, propertyName, propertyValue)
 2    % Execute user callbacks associated with 'matlabEventName'.
 3    % If a property-value pair is also provided, the property will
 4    % be updated before the callbacks are executed.
 5    %
 6    % INPUTS:
 7    %
 8    %  - MatlabEventName:  string representing the event that the component
 9    %                model should emit as a result of the user interaction
10    %  - MatlabEventData:  eventdata associated with eventName
11    %
12    % Example: obj.executeUserCallback('ButtonPushed', 'ButtonPushed', eventData);
13    %
14    % Optional INPUTS:
15    %
16    %  - propertyName:    name of the property to be modified as
17    %                     a result of the user interaction if any
18    %  - propertyValue:   value to update the property to
19    %
20    % Example: obj.executeUserCallback('ValueChanged', eventData, 'Value', newValue);
21
22    assert(nargin == 3 || nargin == 5);
23
24    if(nargin == 3)
25        % There is no property to update, just emit the event
26
27        % Have the model emit the event
28        % The event handling system will execute the callbacks
29        % associated with this event.
30        notify(obj, matlabEventName, matlabEventData);
31
32    else
33        % propertyName and propertyValue were passed in as inputs
34        % The property needs to be updated before sending the event
35
36        oldValue = obj.(propertyName);
37
38        % Check that the property value has indeed changed
39        if(isequal(oldValue,propertyValue))
40            % The value has not changed, do not emit event.
41            % This check is a catch all for instances where the
42            % view does send an event even when the value didn't
43            % really change.
44            return;
45        end
46
47        % Update the property value
48        obj.(propertyName) = propertyValue;
49
50        % Mark properties dirty
51        %
52        % Usually, the property is private, such as 'PrivateFoo'
53        obj.markPropertiesDirty({propertyName});
54
55        % Have the model emit the event
56        % The event handling system will execute the callbacks
57        % associated with this event.
58        notify(obj, matlabEventName, matlabEventData);
59    end
60end

这些代码是Matlab的UI组件的回调函数的核心代码，通过这些代码，可以实现UI组件的回调函数的功能。

例子

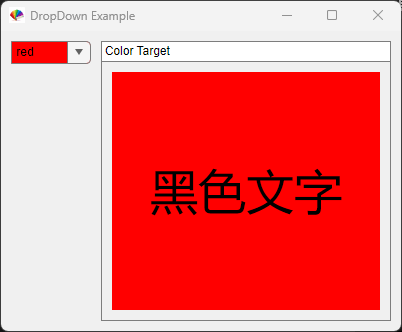

下面我们改造一下官方帮助文件中的例子，搞一个用下拉列表来更换背景颜色的例子。运行的效果如下：

app

文件下载地址：

 1function fig = updateDropDown
 2fig = uifigure('Position', [100 100 480 300], 'Visible', 'off', Name='DropDown Example');
 3fig.Icon = 'icon.jpg';
 4movegui(fig, 'center');
 5
 6fg = uigridlayout(fig, [3 2]);
 7fg.ColumnWidth = {'fit', '1x'};
 8fg.RowHeight = {'1x', 'fit', '1x'};
 9
10
11% color tareget
12p = uipanel(fg);
13
14% 'red', 'green', 'blue', 'cyan', 'magenta', 'yellow', 'black', 'white' 和 'none'
15% 有效的十六进制颜色代码由 '#' 后跟三个或六个十六进制数字组成
16p.BackgroundColor = 'white';
17
18%  'none' | 'etchedin' | 'etchedout' | 'beveledin' | 'beveledout' | 'line'。
19p.BorderType = 'line';
20
21p.Title = 'Color Target';
22p.Layout.Row = [1, 3];
23p.Layout.Column = 2;
24% add text in the center of the panel
25g = uigridlayout(p, [1 1]);
26g.RowHeight = {'1x'};
27g.ColumnWidth = {'1x'};
28t = uilabel(g, 'Text', '黑色文字',...
29    'FontSize', 48, ...
30    'HorizontalAlignment', 'center',...
31    'VerticalAlignment', 'center');
32
33% no height resize
34
35t.Tooltip = "'red', 'green', 'blue', 'cyan', 'magenta', 'yellow', 'black', 'white'; 有效的十六进制颜色代码由 '#' 后跟三个或六个十六进制数字组成";
36
37
38dd = uidropdown(fg, ...
39    'Editable', 'on', ...
40    'ValueChangedFcn', {@addItems, t});
41
42dd.Tooltip = "选择或者编辑颜色";
43dd.Layout.Row = 2;
44dd.Layout.Column = 1;
45
46
47% dd.Items = ["red", "yellow", "green"];
48dd.Items = {'red','green','blue','cyan','magenta','yellow','black','white' };
49for idx = 1:numel(dd.Items)
50    setUpBg(dd, idx, dd.Items{idx});
51end
52
53fig.UserData = struct('dropdown', dd,...
54    'panel', p, ...
55    'text', t);
56
57t.BackgroundColor = dd.Value;
58
59fig.Visible = 'on';
60
61end
62
63function setUpBg(target, idx, c)
64% table, tree, list box, or drop-down UI component
65st = uistyle("BackgroundColor", c);
66addStyle(target, st, "item", idx);
67end
68
69
70function addItems(src, event, p)
71arguments
72    src (1,1) matlab.ui.control.DropDown
73    event (1,1) matlab.ui.eventdata.ValueChangedData
74    p (1,1) matlab.ui.control.Label
75end
76val = src.Value;
77
78if event.Edited
79    src.Items{end+1} = val;
80    setUpBg(src, numel(src.Items), val);
81end
82
83p.BackgroundColor = val;
84
85end

UI相关类

App Designer中的UI编程的函数和类在%MATLAB_ROOT%\toolbox\matlab\uicomponents\uicomponents目录下，根据安装位置，%MATLAB_ROOT%可能是C:\Program Files\MATLAB\R2023b。在+matlab.ui目录下有很多UI相关的类，这些类是App Designer的基础类，可以通过这些类来实现App Designer中的功能。

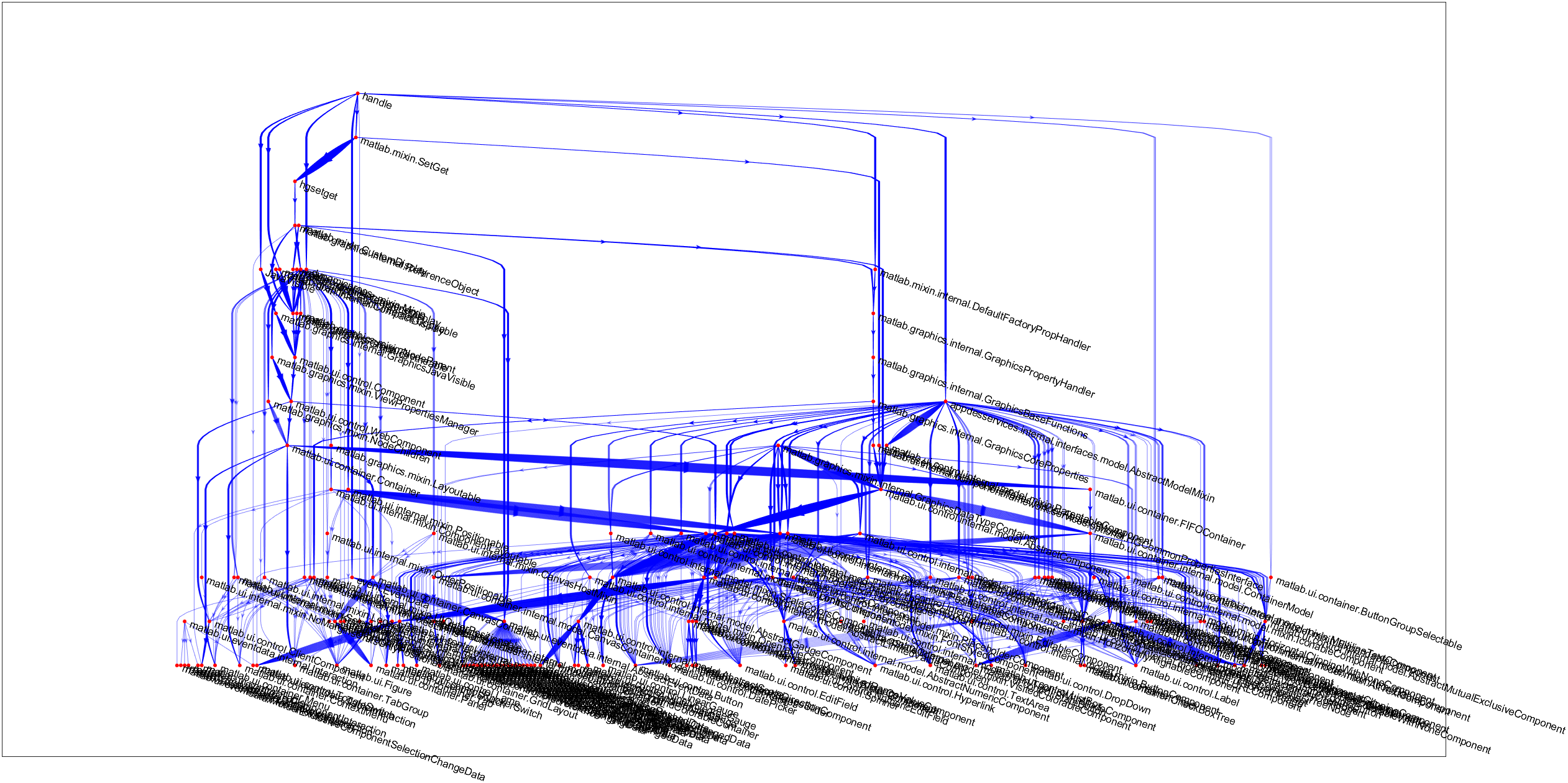

如果把这里面大部分类的继承关系整一个图，大概是这样的：

这个图什么都看不清，但是实际上，运行下面的代码，这个图可随便放大，也能通过鼠标在图上查看节点信息（名称、入度、出度），可以很容易地看到继承关系。

  1paths = walkToTop({'matlab.ui.Figure', ...
  2    'matlab.ui.container.Tree', ...
  3    'matlab.ui.container.TreeNode', ...
  4    'matlab.ui.container.GridLayout', ...
  5    'matlab.ui.container.CheckBoxTree', ...
  6    'matlab.ui.container.TabGroup', ...
  7    'matlab.ui.container.Tab', ...
  8    'matlab.ui.container.Panel',...
  9    'matlab.ui.container.ContextMenu', ...
 10    'matlab.ui.container.Menu', ...
 11    'matlab.ui.control.Table', ...
 12    'matlab.ui.control.AngularGauge', ...
 13    'matlab.ui.control.Button', ...
 14    'matlab.ui.control.CheckBox', ...
 15    'matlab.ui.control.DatePicker', ...
 16    'matlab.ui.control.DiscreteKnob', ...
 17    'matlab.ui.control.DropDown', ...
 18    'matlab.ui.control.EditField', ...
 19    'matlab.ui.control.Gauge', ...
 20    'matlab.ui.control.HTML', ...
 21    'matlab.ui.control.Hyperlink', ...
 22    'matlab.ui.control.Image', ...
 23    'matlab.ui.control.Knob', ...
 24    'matlab.ui.control.Label', ...
 25    'matlab.ui.control.Lamp', ...
 26    'matlab.ui.control.LinearGauge', ...
 27    'matlab.ui.control.ListBox', ...
 28    'matlab.ui.control.NinetyDegreeGauge', ...
 29    'matlab.ui.control.NumericEditField', ...
 30    'matlab.ui.control.RadioButton', ...
 31    'matlab.ui.control.RangeSlider', ...
 32    'matlab.ui.control.RockerSwitch', ...
 33    'matlab.ui.control.SemicircularGauge', ...
 34    'matlab.ui.control.Slider', ...
 35    'matlab.ui.control.Spinner', ...
 36    'matlab.ui.control.StateButton', ...
 37    'matlab.ui.control.Switch', ...
 38    'matlab.ui.control.TextArea', ...
 39    'matlab.ui.control.ToggleButton', ...
 40    'matlab.ui.control.ToggleSwitch',...
 41    'matlab.ui.eventdata.ButtonPushedData', ...
 42    'matlab.ui.eventdata.CheckedNodesChangedData', ...
 43    'matlab.ui.eventdata.ClickedData', ...
 44    'matlab.ui.eventdata.CollapsedChangedData', ...
 45    'matlab.ui.eventdata.ComponentInteraction', ...
 46    'matlab.ui.eventdata.ContextMenuOpeningData', ...
 47    'matlab.ui.eventdata.DataChangedData', ...
 48    'matlab.ui.eventdata.DoubleClickedData', ...
 49    'matlab.ui.eventdata.DropDownInteraction', ...
 50    'matlab.ui.eventdata.DropDownOpeningData', ...
 51    'matlab.ui.eventdata.FigureInteraction', ...
 52    'matlab.ui.eventdata.HTMLEventReceivedData', ...
 53    'matlab.ui.eventdata.HyperlinkClickedData', ...
 54    'matlab.ui.eventdata.ImageClickedData', ...
 55    'matlab.ui.eventdata.ListBoxInteraction', ...
 56    'matlab.ui.eventdata.MenuSelectedData', ...
 57    'matlab.ui.eventdata.MutualExclusiveComponentSelectionChangeData', ...
 58    'matlab.ui.eventdata.NodeCollapsedData', ...
 59    'matlab.ui.eventdata.NodeExpandedData', ...
 60    'matlab.ui.eventdata.NodeTextChangedData', ...
 61    'matlab.ui.eventdata.PasswordEnteredData', ...
 62    'matlab.ui.eventdata.SelectedNodesChangedData', ...
 63    'matlab.ui.eventdata.TableInteraction', ...
 64    'matlab.ui.eventdata.TreeInteraction', ...
 65    'matlab.ui.eventdata.ValueChangedData', ...
 66    'matlab.ui.eventdata.ValueChangingData'});
 67
 68
 69% get all names into a set
 70names = {};
 71for i = 1:length(paths)
 72    for j = 1:length(paths{i})
 73        if ~ismember(paths{i}{j}, names)
 74            names = [names, paths{i}{j}];
 75        end
 76    end
 77end
 78
 79
 80% initialize the digraph
 81
 82dgObj = digraph;
 83for i = length(names):-1:1
 84    dgObj = addnode(dgObj, names{i});
 85end
 86
 87
 88for i = 1:length(paths)
 89    for j = 1:length(paths{i})-1
 90        dgObj = addedge(dgObj, paths{i}{j+1}, paths{i}{j});
 91    end
 92end
 93
 94% visualize the digraph
 95plot(dgObj, 'Layout', 'layered', 'NodeLabel', dgObj.Nodes.Name, 'NodeColor', 'r', 'EdgeColor', 'b');
 96exportgraphics(gcf, 'matlab-ui-classes.png');
 97
 98% find the roots and write markdown for me
 99parents = dgObj.Nodes{indegree(dgObj) == 0, :};
100for i = 1:numel(parents)
101    fprintf("- `%s`\n", parents{i});
102end

最后这段话找出所有的基类（也就是digraph中入度为0的节点），并且把下面的Markdown帮我写好。其实，最上面那段UI对象的列表，我也是通过这段代码生成的……可以留做一个作业！

Matlab App开发的相关类的基类基本上是下面这些：

  • matlab.ui.eventdata.FigureInteraction
  • matlab.ui.eventdata.internal.Interaction
  • matlab.graphics.mixin.internal.GraphicsDataTypeContainer
  • matlab.mixin.internal.CompactDisplay
  • matlab.mixin.CustomDisplay
  • matlab.mixin.Heterogeneous
  • handle

其中，handle是Matlab中的句柄类，所有的UI组件都是handle的子类，这个类的对象都是传递引用的，而不是传递值的。这在UI组件的回调函数中是非常有用的，可以通过传递UI组件的句柄，来实现UI组件之间的交互。

参考

  1. GUI系列
  2. Create Callbacks for Apps Created Programmatically

总结

  1. 回调函数是Matlab GUI和App设计中的一个核心的内容，通过用户注册回调函数，在界面操作时App代码会自动调用相应代码，实现各种功能。
  2. 回调函数的注册方式有两种：函数句柄和匿名函数。
  3. 回调函数具体实现方式有三种：全局函数、局部函数和嵌套函数。

文章标签

|-->matlab |-->gui |-->callback |-->uidropdown

GitHub
